Electric Insulation: Market Trends, Manufacturing Challenges and High-Performance Products
Demand for high-performance electrical insulation tapes is driven by industrial requirements. Ageing electrical infrastructure, increased energy demands, modernisation of the electricity grid, electric vehicle sales, a growing demand for higher efficiency electric motors, and the expansion of electric charging stations will collectively push demand to an all-time high. The effects of this increased demand will include raw material shortages, logistical challenges, and supply chain complications that could lead to inflation and extended lead times. Saint-Gobain® Tape Solutions is uniquely positioned to address these challenges. Our decentralised operations, extensive industry knowledge, and integrated quality management systems enable continuous improvements within the supply chain. We have developed operational excellence and can supply our proven brand of high-performance electrical insulation tapes to global markets with on-time delivery while addressing short lead times with our capabilities for short-notice production. Saint-Gobain is a reliable partner offering a wide portfolio of high value-added solutions that meet demanding electrical insulation requirements.
Market Trends
Recent manufacturing trends focus on design quality with an emphasis on short-notice production, on-time delivery, and support for sales growth opportunities.
Transformers
Increased energy demands, renewable and distributed energy sources, micro-grids, and the anticipated expansion of digitised substations to support a smart grid will all require substantial capital investments. Power transformers, distribution transformers, and instrument transformers are likely to experience a period of rapid growth. Smart transformers, in particular, are expected to achieve a compound annual growth rate (CAGR) of up to 24.4% between 2017 and 2025, as reported by Grand View Research in their recent market report, “Solid State (Smart) Transformer Market Size, Industry Report 2018-2025.”
A wide range of transformers is required to address power generation and distribution systems, with each type carrying specific requirements. Unique electrical insulation solutions are needed to address operating temperatures, material compatibility issues, and general insulation requirements.
Electric Motors
The IEC revised standard IEC 60034-30-1:2014, which defines a classification system for electric motors. In an effort to meet the minimum requirements of premium efficiency (IE3) and super premium efficiency (IE4) defined by this standard, motor manufacturers are incorporating high-performance electrical insulation tapes, and these higher efficiency motors are expected to increase their market share.
Traction motors, in particular, are experiencing the highest growth rate. IHS Markit forecasts a five-year CAGR of 43.1% between 2016 and 2021, as presented at the 2017 Coil Winding, Electric Motor & Transformer Manufacturing Exhibition (CWIEME) in Berlin. High demand is expected to be driven by the increased market share of electric vehicles and the wider adoption of electric locomotives in the transportation sector.
UL Listings for CHR® and h-old® Product Brands
Thermal degradation of insulating materials is the greatest concern for electrical insulation systems (EIS) and electrical insulation materials (EIM) that are exposed to hot spot temperatures exceeding 105°C. To certify EIS and EIM for use at elevated temperatures and to determine their compatibility with their environment, Underwriters Laboratory (UL) developed the standard UL 1446 “Systems of Insulating Materials.”
| Thermal Class Ratings | |
|---|---|
| UL Letter Class | Temperature Rating (°C) |
| A | 105 |
| E | 120 |
| B | 130 |
| F | 155 |
| H | 180 |
| N | 200 |
Table 1. Thermal class ratings as defined by UL 1446.
UL 1446 is the de facto standard that defines guidelines and test methods for evaluating the thermal performance of EIM and their interaction as a complete system. Full thermal ageing tests, high-voltage full thermal ageing tests, and short-term thermal ageing test methods are used to monitor thermal degradation over time. These rigorous survivability tests subject materials and systems to specified operating temperatures for 20,000 hours, at a temperature 20 degrees higher than their expected operating temperature for 5,000 hours, and address the performance of high-voltage systems. A thermal class rating is issued based on test results, and a UL Certification report is then provided.
Saint-Gobain Tape Solutions offers CHR and h-old high-performance electrical insulation tapes that are certified to thermal classes as defined by UL 1446. End-product manufacturers require the use of UL 1446 materials if the EIS hot spot temperature exceeds 105°C. By partnering with Saint-Gobain Tape Solutions, partners gain access to a broad portfolio of high-performance electrical insulation tapes that meet these requirements for a wide range of applications, including high-voltage rotating machinery and a diverse range of transformers.
High-Performance Electrical Insulation Tapes
Saint-Gobain offers two brands of high-performance electrical insulation tapes. Our CHR and h-old product brands provide a comprehensive portfolio of electrical insulation tapes for the North American and European markets, respectively. These brands offer a combination of backings and adhesives to meet application requirements across a wide range of markets, including aerospace, oil and gas, electronics, electrical, and industrial sectors.
High Temperature Electrical Insulation Tape Materials — UL Class N (200°C) and UL Class H (180°C)
Glass cloth tapes offer high temperature resistance (up to 220°C), high tensile strength, and abrasion resistance. Due to their excellent mechanical properties and outstanding flame-retardant performance, they are an ideal electrical insulation solution for medium- and large-sized electric motors.
Polyimide (PI) film (Kapton®) adhesive tapes are flame-retardant according to UL 510, offer high temperature resistance (>180°C), and outstanding dielectric performance. These thin, high-temperature tapes address insulation requirements of traction motors, high-voltage motors, and dry-type transformers.
PEN (Teonex®) film offers excellent chemical resistance and high-temperature resistance (up to 180°C). Teonex is recommended for insulating transformers and coils.
Nomex® aramid paper tapes are offered with acrylic and rubber adhesives. They offer higher tensile strengths as well as high dielectric and impregnation properties and are an ideal choice for increased durability in motors and transformers.
Glass filament reinforced PET film and paper tapes offer high chemical and mechanical resistance. They are offered with acrylic adhesive for better chemical resistance to oils and solvents for applications in dry or oil-filled transformers.
PTFE tapes with silicone adhesive exhibit outstanding temperature resistance and a low coefficient of friction. They are an ideal insulator for high-frequency motors.
Medium Temperature Electrical Insulation Tape Materials — UL Class F (155°C), UL Class B (130°C), and UL Class A (105°C)
PET film/non-woven and paper laminated tapes offer good conformability, strength, and are puncture resistant. They are often used for phase insulation and coil wrapping.
PET film adhesive tapes are offered with rubber, silicone, or acrylic pressure-sensitive adhesives and are available in a wide range of thicknesses and colours. They exhibit high tack properties for good adhesion to a wide array of substrates. They also offer good conformability, breakdown voltage, and tensile strength. They are flame-retardant and printable with good compatibility with varnishes and resins. They are used for interlayer insulation and final binding as well as insulating smaller dry-type transformers or toroidal coils.
Acetate cloth backed tapes are offered with a thermosetting rubber adhesive that provides a very good initial tack. They are highly conformable and are used for the wrapping of bobbins and smaller transformers.
Double-sided adhesive tapes offer good initial adhesion and electrical properties. They are used to fix insulating material by the initial unwinding when manufacturing transformers.
Copper foil tapes are offered with conductive acrylic adhesive. They are used for static electricity discharging as well as shielding from electromagnetic and electrostatic fields.
Co-development Program
Saint-Gobain Tape Solutions offers endless permutations for backing materials and adhesives. We offer a wide selection of CHR and h-old high-performance electrical insulation tapes that are each tailored to address a particular application. From our h-old PS.249 polyester film/glass filament electrical insulating tapes with best-in-class oil compatibility for low-temperature oil-filled transformers to our CHR G565 glass cloth backing silicone adhesive pressure-sensitive tape for large- and medium-sized electrical motors, we strive to have a solution to fit every need.
In instances where a stock CHR and h-old brand solution is not available for a given application, our tape development engineers are available to formulate a custom tape solution to address unique requirements and demanding applications. Through co-development with our partners, we are able to design a highly effective tape product.
Co-development Case Study

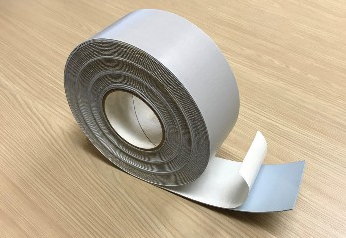

An electric vehicle battery module requires an electrical insulating tape that offers improved thermal conductivity, electrical insulation, and mechanical properties while addressing manufacturing time and cost limits. Saint-Gobain Tape Solutions addressed these requirements by co-developing an adhesive-coated silicone rubber and PTFE film that was die-cut for the EV battery application.
WCM is Saint-Gobain Tape Solutions’ manufacturing excellence programme that allows for continuous improvement of lead time and component quality. It is a collection of tools and processes put in place to help manage continuous improvement of these eight pillars: health and safety, environment and risk prevention, reliability, industrial efficiency, quality and process control, customer focus and service, people development, and innovation development and growth.
Conclusion
The anticipated CAGR of emerging markets and technologies creates a need for innovation. As product manufacturers address performance and efficiency challenges, they require a reliable partner who can readily supply high-performance electrical insulation tapes.
Saint-Gobain Tape Solutions offers a wide range of high-performance electrical insulation tapes that are developed for specific applications. Our broad portfolio of CHR and h-old electrical insulation tapes addresses a diverse set of needs, and in cases where a stock product is insufficient, a co-development programme exists to address the most demanding and specialised applications with short lead times for both low- and high-volume orders.
